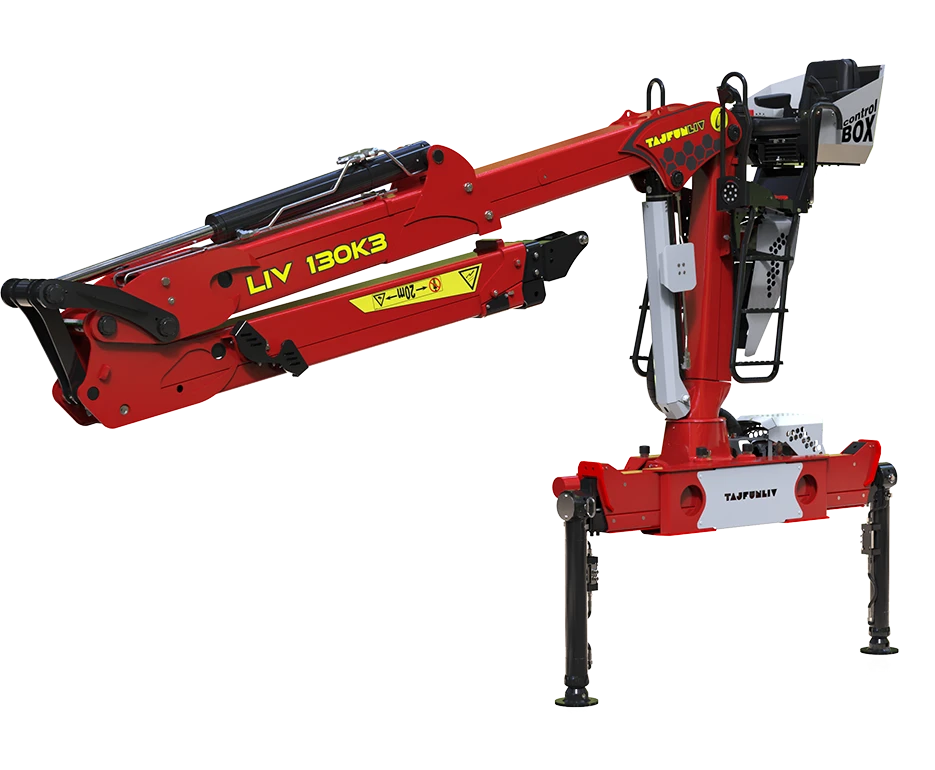

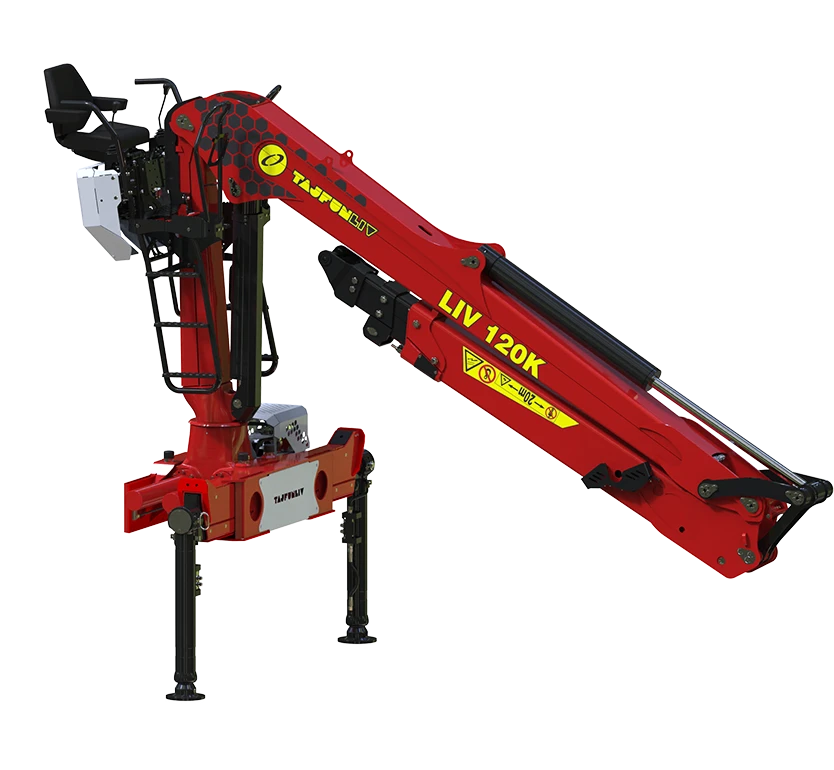

"K" cranes (CE - EN12999) with optimized kinematics achieve outstanding results. These cranes fold lengthwise onto the load or into the cargo area during transport.
A special feature is the lever mechanism between the inner and outer boom, which allows for an additional increase in lifting moment in the extended position. Combined with a single or double telescopic extension, they meet various user requirements. They are buit for loading logs of different dimensions as well as piece and bulk cargo, with a capacity ranging from 10 to 31 tons and a reach of up to 14,5 meters. The K cranes are also suitable for static mounting.
up to 14,5 m
up to 311 kNm
422°
Advanced hydraulic integration with improved protection and extended service life for optimal crane operation.
Hose protection on the column – the hydraulic hoses run from the distributor to the lifting arm on the seat module under the cover, providing the operator with maximum protection from them.
The hydraulic hoses are integrated into the lifting and slewing arms. A removable cover ensures their protection, providing easy access to the hoses for quick and simple replacement.
Smooth guidance of the telescopic arms is enabled by side guides made of high-quality material, which are easily adjustable for optimal control.
The hydraulic hoses are also integrated into the bridge arms, preventing potential damage during transport.
To improve durability and simplify crane mounting configurations, we developed an innovative, patented cast base made of three main structural parts. Thanks to its optimized geometry, achieved through casting rather than welding, the base is free of residual stresses in critical areas — ensuring long-term strength and structural integrity.
Stress visualization highlights how casting eliminates internal tension in high-load area, something welded structures can't match. Tested under real dynamic and fatigue loads, the cast base delivers proven strength and long-term reliability.
Designed for real-world flexibility, the cast base enables quick conversion between single or double stabilizer bridges and left or right mounting. This modular approach improves structural balance, adapts to different chassis configurations and reduces downtime during service, as only the necessary part is replaced.
A new concept for the base allowing the
single and double extension of outriggers. A redesigned join between the central part of the base and the bridge – fewer critical points.
Sturdy setup is enabled by robust stabilizer legs, and the innovative system allows for 360° rotation of the stabilizer cylinders.
The latest design solutions are adopted towards a uniform, recognizable design for the entire crane group.
Double LED lights on the swing arm and double LED lights on the control module provide 40% more illumination and a compact design.
Resistance to mechanical, chemical, and weather influences, while maintaining visual appeal, is ensured by state-of-the-art protection and painting technology.
Developed with a touchscreen interface and Android software, our advanced control console improves crane efficiency and safety. It supports automation, IoT connectivity and remote access, enabling precise operation, real-time system insight and better overall performance.
You can choose the control method that best suits your needs among four crane control options.
Servocontrols for ControlBox:
- 2x hydraulic joysticks and 2 foot pedals,
- 4x linear levers and 2 pedals,
- 5x linear levers and 1 pedal,
- 6x linear lever (Parker).
Mechanical control:
- with two cross levers or
- with four linear levers and two pedals (Danfoss).
Electro-proportional control:
- with Scenreco remote control.

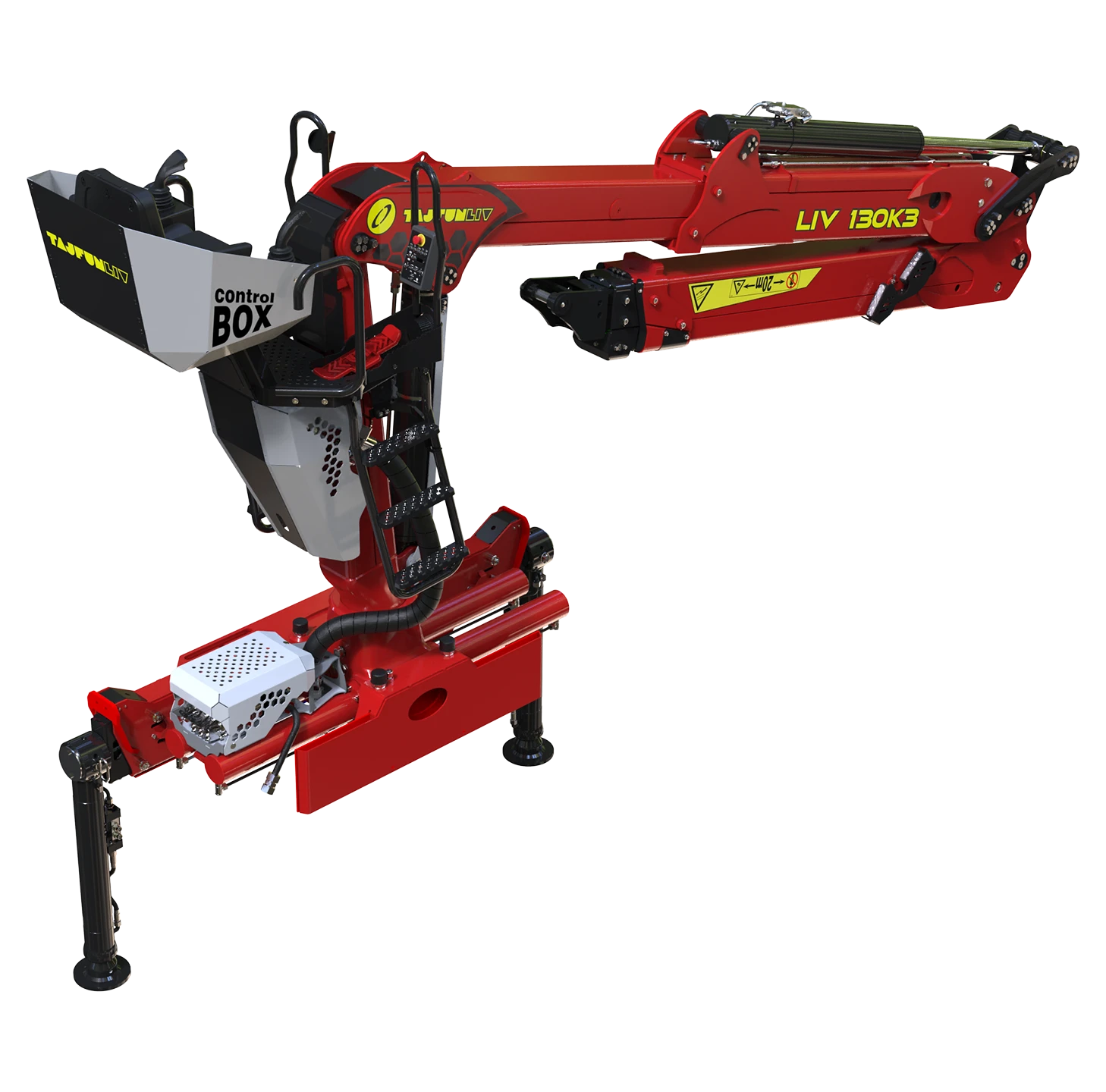

The spring-loaded seat module - Control Box ensures more comfort. It provides transparent crane control and complete movement control.
Precise control of stabilizers is enabled by Danfoss electro-hydraulic valves or via the new control console on the seat module.
The new integrated control system on the base allows easy maintenance. The protective cover protects it from adverse weather conditions and possible mechanical damage.

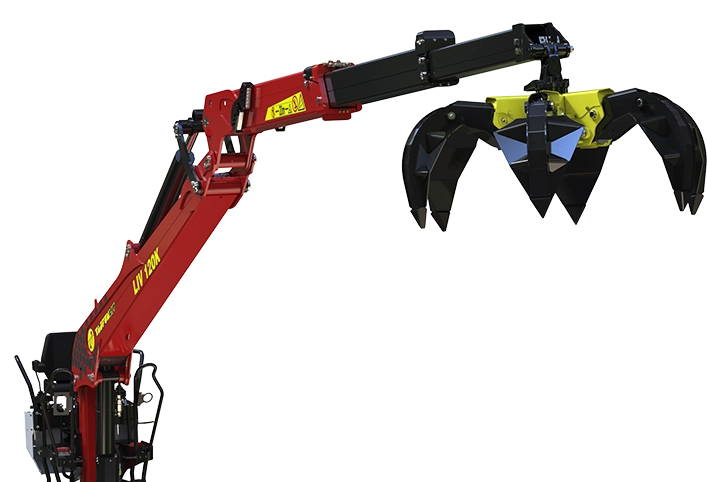

Tajfun LIV grapples are the result of our own development and production. Exceptional strength and durability combined with fast, smooth, and efficient operation are the features that make Tajfun LIV grapples the right choice for loading and unloading logs.
